3. Battery & Antenna placement
Front Antenna
Also at the front of the boat is a threaded antenna mount. The supplied 868 MHz antenna screws onto this and provides the GPS signal for the boats Autopilot system. This antenna allows the autopilot system to achieve a range of approximately 1km, provided everything is properly aligned.
Rear “Shark Fin” Antenna
The antenna base at the rear of the boat is for the Shark Fin antenna, this provides the signal for the echo sounder. The antenna simply pushes onto the base and is held in place by strong magnets within the aerial.
Battery compartment - Smart Battery System
The Smart Battery System is designed for ease of use. Each battery will only fit in one direction with the connectors towards the centre of the tray. Once placed correctly into the tray, just press down on the top of the battery to make the final connection.
Battery compartment - Basic Softpack System
The Basic Softpack Battery System, there are two cables within the battery compartment that the batteries connect to. These cables are equipped with fuses to protect the boat's electronics system from damage in case of excessive load or a short circuit.
4. On - Off SWITCHES RT7 & AIO Controller
All-in-One Controller
On the left side, you will find the power button for the AiO controller. When this is activated the controller and the tablet (if connected) will turn on.
RT7 BAITBOAT - Front Power Button
The button at the front provides the main power for the boat. When it’s activated, the boat is turned on and power is supplied to the entire system. When in the “On” position the Blue “Halo” ring will also be illuminated.
RT7 BAITBOAT - Rear Power Button
The rear power button is for the boats echo sounder. When in the “On” position the echo sounder is turned on, and again the Blue Halo ring will be illuminated.
1. CHARGE BAITBOAT BATTERIES
Baitboat Batteries
Charge the Baitboat Batteries! Be sure that the batteries are fully charged before first use!
Battery Type: Li-Ion Baitboat-Akku 14,8V 8,7aH :
Charger Manual download link
Battery Type: SmartPWR 14.8V ACCU | ULTRA HI-C :
Charging your Baitboat Battery was never so easy, just plug & play. Connect the (Male) PIN-Connector [ SMART Fast charger with 5A ] to the (Female) PIN-Connector [ SMART DIGITAL BAITBOAT BATTERY ] and plug it into 220v powersocket. Charging will automatically start & stop when battery is fully charged. Charger led will turn green when finished and red during charge.
2. CHARGE All-In-One Controller
All-In-One Controller
Charge the All-In-One Controller! Be sure that its fully charged before first use!
USB-C charging port
Below on the right, you will find the USB-C charging port for the AiO controller. When connected it will charge the AiO controller and tablet (if plugged in) at the same time. Charging is indicated by a red LED on the right LED strip.
5. Carplounge user account
Carplounge User Account
A Carplounge user account is needed to activate the RT7.
Use your existing or create a new account
Use your existing carplounge user account or when you dont have one, create a new account at this page https://www.carplounge.de/en/account
BOX CONTENT:
Box content:
RT7 Baitboat
1 x
All-In-One Controller (AIO)
1 x
EPP Boat Case
1 x
EPP AIO-Controller Case
1 x
868 MHz antenna
1 x
Shark Fin” Antenna
1 x
USB-C to USB-C Cable
1 x
SMART DIGITAL BAITBOAT BATTERY ULTRA HI-C 4S *
2 x
* Depends on your order - You have ordered the SMART BATTERY upgrade.
SMART Fast charger with 5A *
1 x
* Depends on your order - You have ordered the SMART BATTERY upgrade.
BASICPWR Li-Ion Baitboat battery 14,8V 8,7aH HI-C *
2 x
* Depends on your order - You did not order the SMART BATTERY upgrade.
SKYRC IMAX B6 EVO CHARGER *
1 x
* Depends on your order - You did not order the SMART BATTERY upgrade.
6. Activate your rt7 Baitboat
1. Antennas & Batteries
Ensure that all antennas are properly attached and that two batteries are connected to the boat.
2. Power on RT7 BAITBOAT
Turn on the boat via the [main switch] located in the front, and also turn on the echo sounder switch (if using the echo sounder) at rear.
3. Power on All-in-One Controller
Turn on the [All-in-One Controller], including the [tablet].
4. Carplounge V4 App
Select the Carplounge V4 App on the homescreen from the AIO Controller to open the Autopilot V4 app.
5. Internet Connection
Make an Internet connection with your home network by swiping down on the AIO Tablet screen and long press on the Wifi icon to enter your details.
6. Login to Activate
Go back to the Carplounge App to activate your RT7 by given in your account name and password.
7. Login Successful
Your login is successful when you see ''Hello (account name) '' upper left. You can now use the boat and it functions

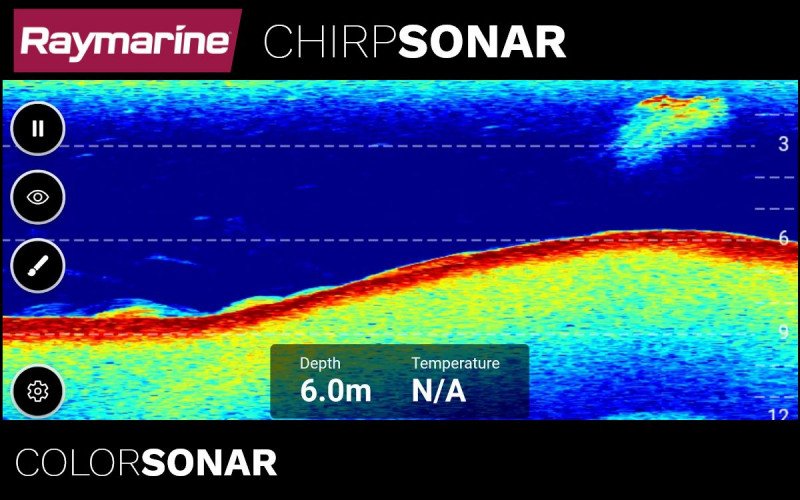

CHIRP SONAR (COLOR)
CHIRP Sonar delivers exceptional clarity, sharper fish targets, and automatic operation using Raymarine’s next generation ClearPulse™ digital sonar processing. Digital Sonar operates at 200kHz With 10 times the resolution of ordinary sonars the Raymarine wide spectrum CHIRP sonar delivers sharper, more defined fish targets and automatically filters out unwanted noise so you never miss the action from down below.
Clear Differentiation with Color Display
The colour gradient goes from blue (extremely soft) to green (soft) to red (hard). The deeper the red colour of a displayed object or the bottom, the stronger the signal that returns to the transducer, indicating a harder object or a closer proximity to the boat. This allows for a clear differentiation between hard and soft bottoms based on the colour display.
Fish Identification Made Easy
One of the strengths of the Sonar view is the fish identification, which is represented by arcs. The larger the arc, the larger the fish. The deeper the red colour of the arc, the closer the fish is to the boat. This allows for clear differentiation between the size and distance of the fish.
Hypervision: DownVision
Provides an enhanced DownVision mode with higher resolution, providing unparalleled detail and data.
CHIRP SONAR (COLOR)
CHIRP Sonar delivers exceptional clarity, sharper fish targets, and automatic operation using Raymarine’s next generation ClearPulse™ digital sonar processing. Digital Sonar operates at 200kHz With 10 times the resolution of ordinary sonars the Raymarine wide spectrum CHIRP sonar delivers sharper, more defined fish targets and automatically filters out unwanted noise so you never miss the action from down below.
Clear Differentiation with Color Display
The colour gradient goes from blue (extremely soft) to green (soft) to red (hard). The deeper the red colour of a displayed object or the bottom, the stronger the signal that returns to the transducer, indicating a harder object or a closer proximity to the boat. This allows for a clear differentiation between hard and soft bottoms based on the colour display.
Fish Identification Made Easy
One of the strengths of the Sonar view is the fish identification, which is represented by arcs. The larger the arc, the larger the fish. The deeper the red colour of the arc, the closer the fish is to the boat. This allows for clear differentiation between the size and distance of the fish.
CHIRP SONAR (COLOR)
CHIRP Sonar delivers exceptional clarity, sharper fish targets, and automatic operation using Raymarine’s next generation ClearPulse™ digital sonar processing. Digital Sonar operates at 200kHz With 10 times the resolution of ordinary sonars the Raymarine wide spectrum CHIRP sonar delivers sharper, more defined fish targets and automatically filters out unwanted noise so you never miss the action from down below.
Clear Differentiation with Color Display
The colour gradient goes from blue (extremely soft) to green (soft) to red (hard). The deeper the red colour of a displayed object or the bottom, the stronger the signal that returns to the transducer, indicating a harder object or a closer proximity to the boat. This allows for a clear differentiation between hard and soft bottoms based on the colour display.
Fish Identification Made Easy
One of the strengths of the Sonar view is the fish identification, which is represented by arcs. The larger the arc, the larger the fish. The deeper the red colour of the arc, the closer the fish is to the boat. This allows for clear differentiation between the size and distance of the fish.
Hypervision: DownVision
Provides an enhanced DownVision mode with higher resolution, providing unparalleled detail and data.
fasdfasdfasd
gsfgsdfgsdfsd
3. Battery & Antenna placement
Front Antenna
Also at the front of the boat is a threaded antenna mount. The supplied 868 MHz antenna screws onto this and provides the GPS signal for the boats Autopilot system. This antenna allows the autopilot system to achieve a range of approximately 1km, provided everything is properly aligned.
Rear “Shark Fin” Antenna
The antenna base at the rear of the boat is for the Shark Fin antenna, this provides the signal for the echo sounder. The antenna simply pushes onto the base and is held in place by strong magnets within the aerial.
Battery compartment - Smart Battery System
The Smart Battery System is designed for ease of use. Each battery will only fit in one direction with the connectors towards the centre of the tray. Once placed correctly into the tray, just press down on the top of the battery to make the final connection.
Battery compartment - Basic Softpack System
The Basic Softpack Battery System, there are two cables within the battery compartment that the batteries connect to. These cables are equipped with fuses to protect the boat's electronics system from damage in case of excessive load or a short circuit.
4. On - Off SWITCHES RT7 & AIO Controller
All-in-One Controller
On the left side, you will find the power button for the AiO controller. When this is activated the controller and the tablet (if connected) will turn on.
RT7 BAITBOAT - Front Power Button
The button at the front provides the main power for the boat. When it’s activated, the boat is turned on and power is supplied to the entire system. When in the “On” position the Blue “Halo” ring will also be illuminated.
RT7 BAITBOAT - Rear Power Button
The rear power button is for the boats echo sounder. When in the “On” position the echo sounder is turned on, and again the Blue Halo ring will be illuminated.
GENERAL APP FEATURES AND SETTINGS

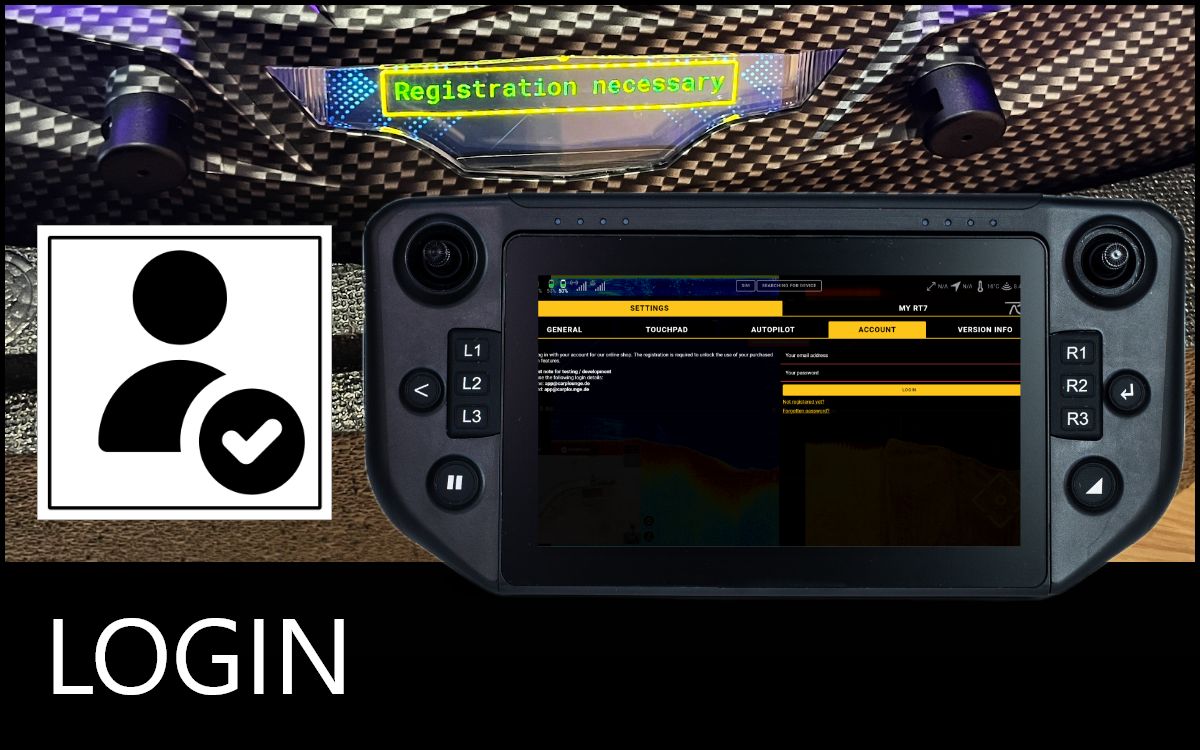

App-Login
Ermöglicht dem Nutzer eine sichere Anmeldung in der App, welche ein personalisiertes Erlebnis und Zugriff auf gespeicherte Daten bietet.
+ BASIC PAKET

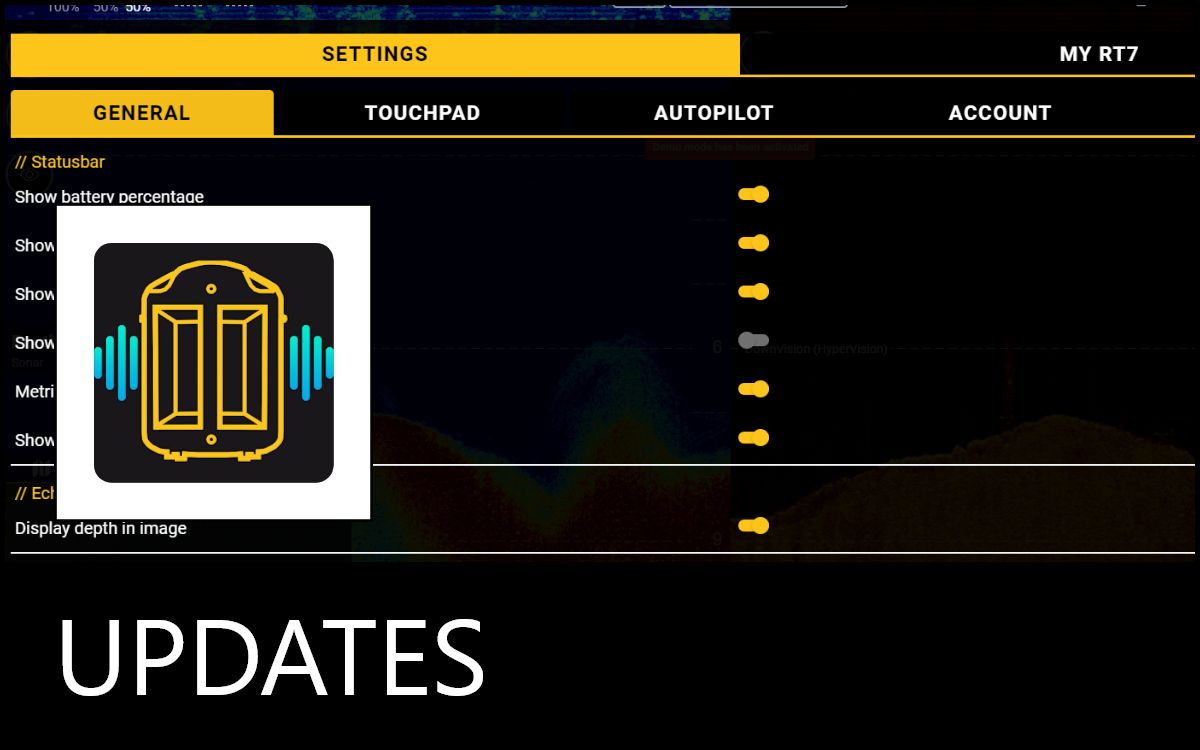

Automatische App & Firmware-Updates
Aktualisiert die App und die Firmware automatisch auf die neuesten Versionen und sorgt so für optimale Leistung und neue Funktionen.
+ BASIC PAKET

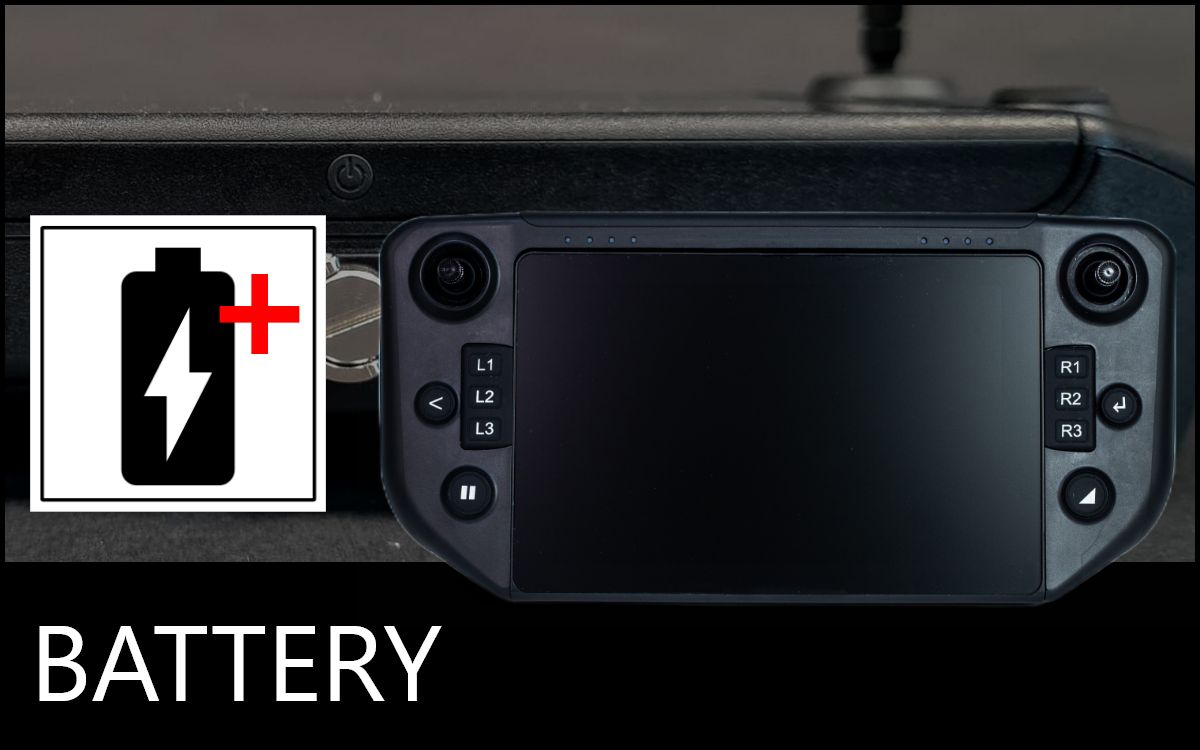

Einstellung: Uhrzeit & Akkustand Tablet anzeigen
Ermöglicht die Anzeige der aktuellen Uhrzeit und des Akkustands des Tablets innerhalb der App und liefert so wichtige Informationen.
+ BASIC PAKET

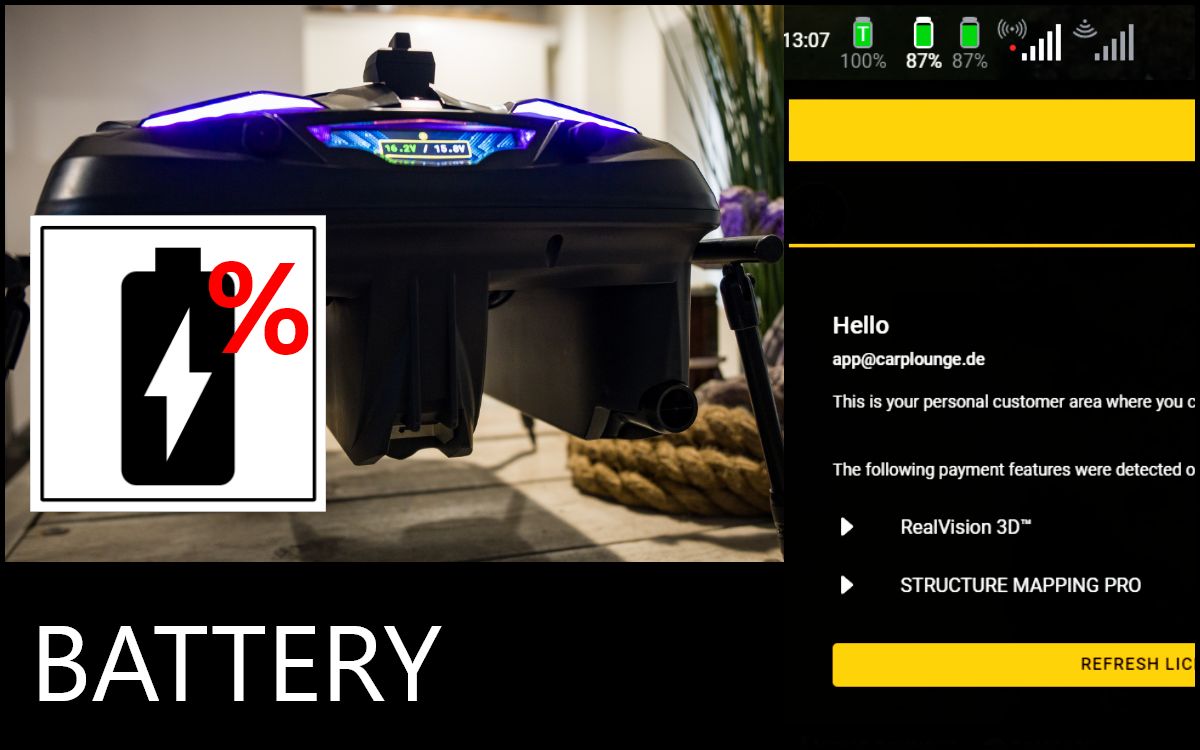

Einstellung: Batterie-Anzeige in Prozent
Ermöglicht eine genaue Einschätzung der verbleibenden Batteriekapazität und damit eine optimale Planung für längere Fahrten
+ BASIC PAKET

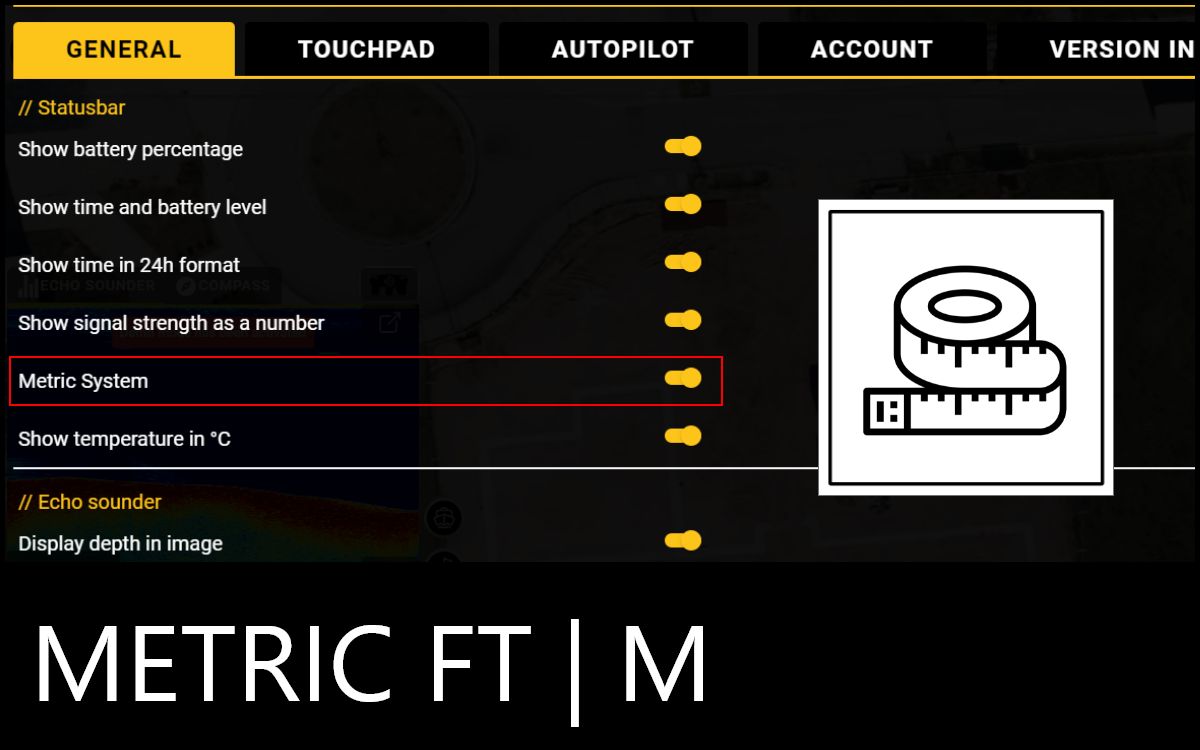

Einstellung: Metrisches System (m/ft)
Ermöglicht es den Nutzern, entfernungen in ihrer bevorzugten Maßeinheit anzuzeigen, was die App benutzerfreundlicher macht.
+ BASIC PAKET

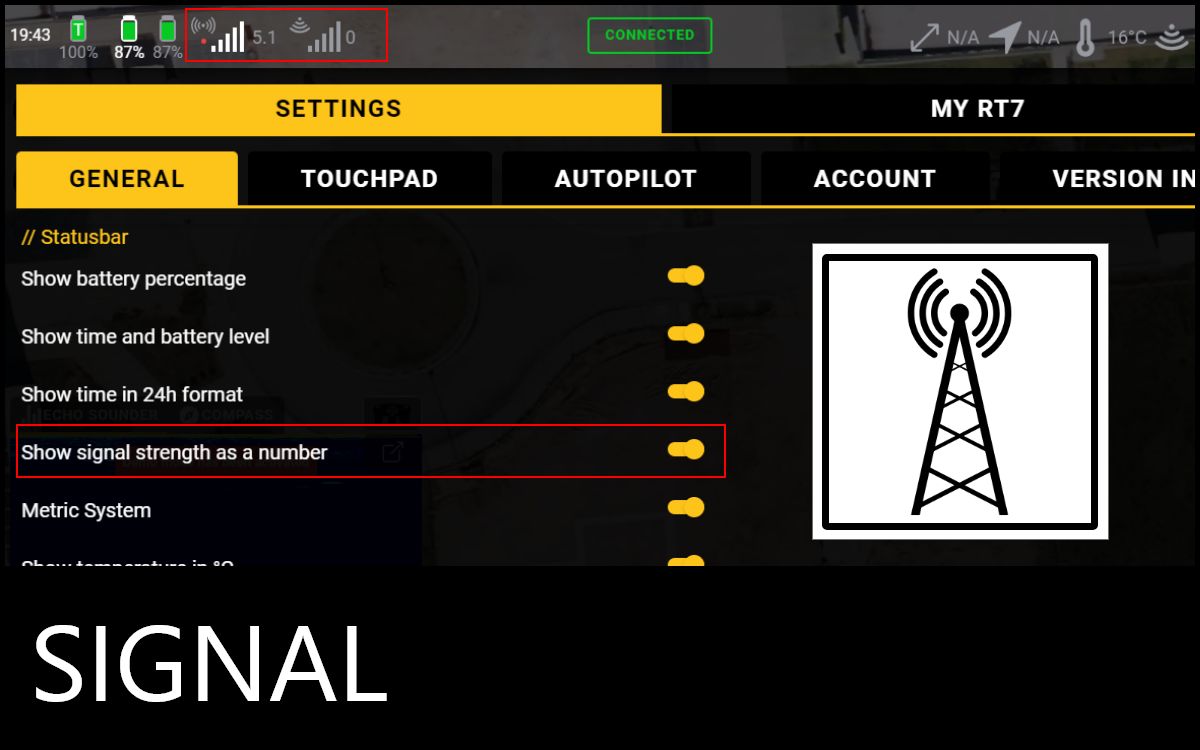

Einstellung: Signalstärke in Zahlen
Bietet ein quantitatives Maß für die Signalstärke und hilft dem Benutzer eine stabile Verbindung für eine zuverlässige Navigation aufrechtzuerhalten.
+ BASIC PAKET

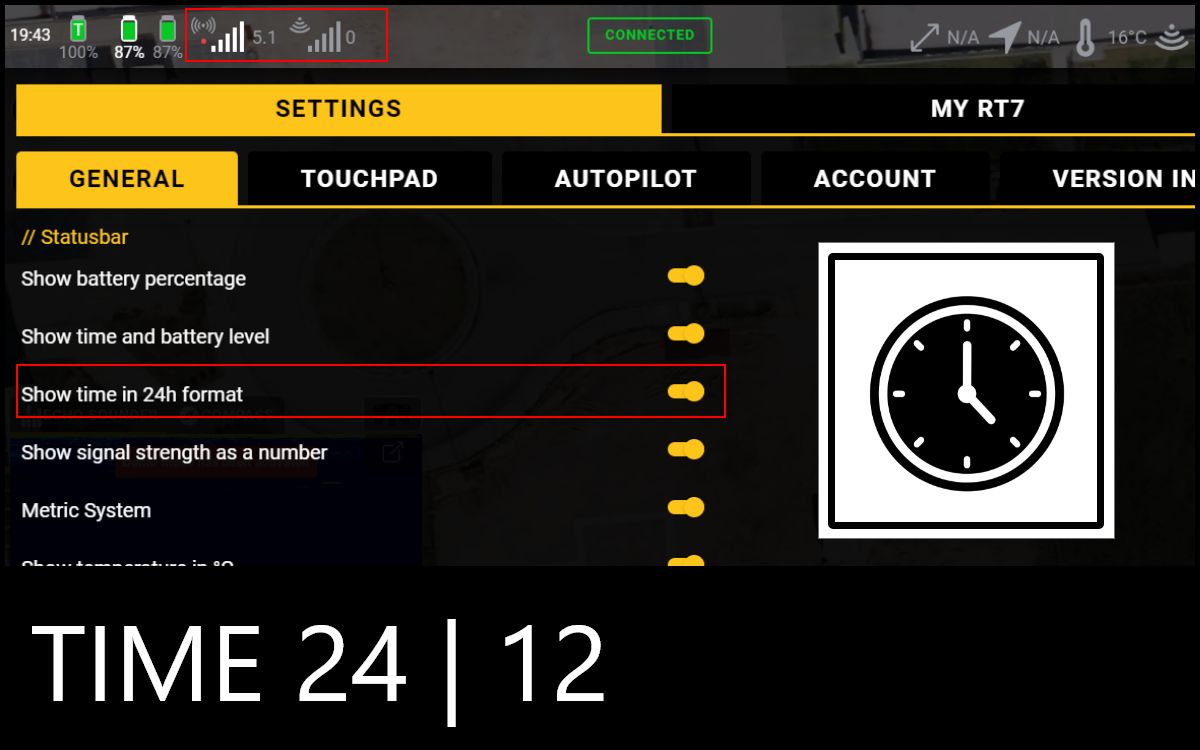

Einstellung: Zeit-Format
Ermöglicht es den Benutzern, die Zeit in ihrem bevorzugten Format anzuzeigen, was die Anpassungsmöglichkeiten der App erweitert.
+ BASIC PAKET

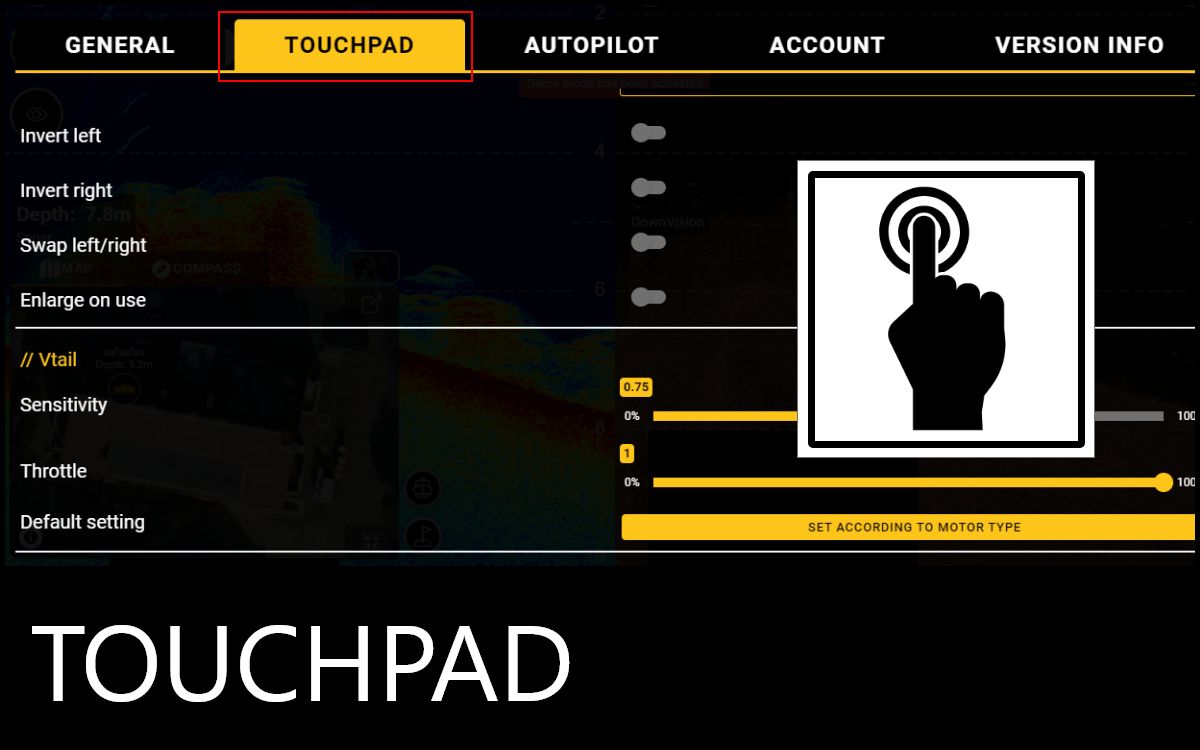

Sensitivitätseinstellungen für Touchpad
Ermöglicht es dem Benutzer, die Empfindlichkeit des Touchpads nach seinen Wünschen einzustellen und damit die Steuerungsmöglichkeiten individuell anzupassen.
+ BASIC PAKET

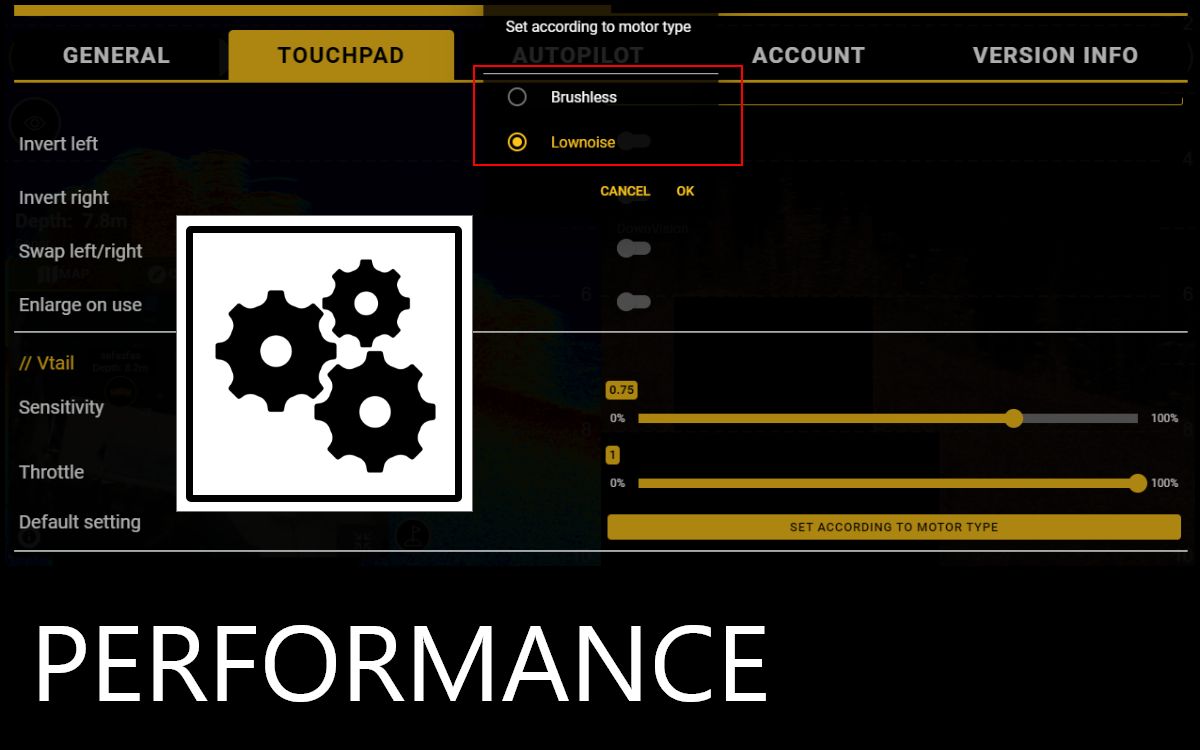

Individuelle Mischer-Einstellung nach Motorart
Stimmt die Einstellungen auf den jeweiligen Motortyp ab und sorgt so für optimale Leistung.
+ BASIC PAKET

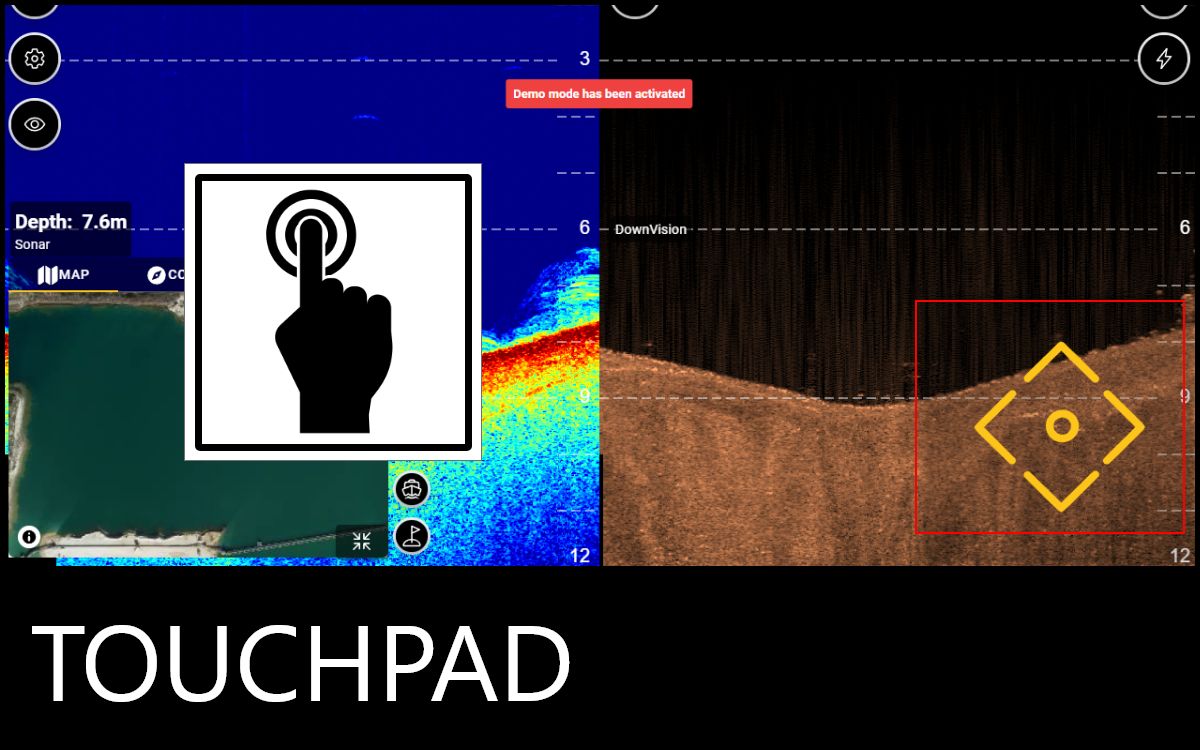

Touchpad zum Fahren
Bietet eine intuitive Möglichkeit, das Boot direkt vom Tablet aus zu steuern, was die Benutzerfreundlichkeit erhöht.
+ BASIC PAKET

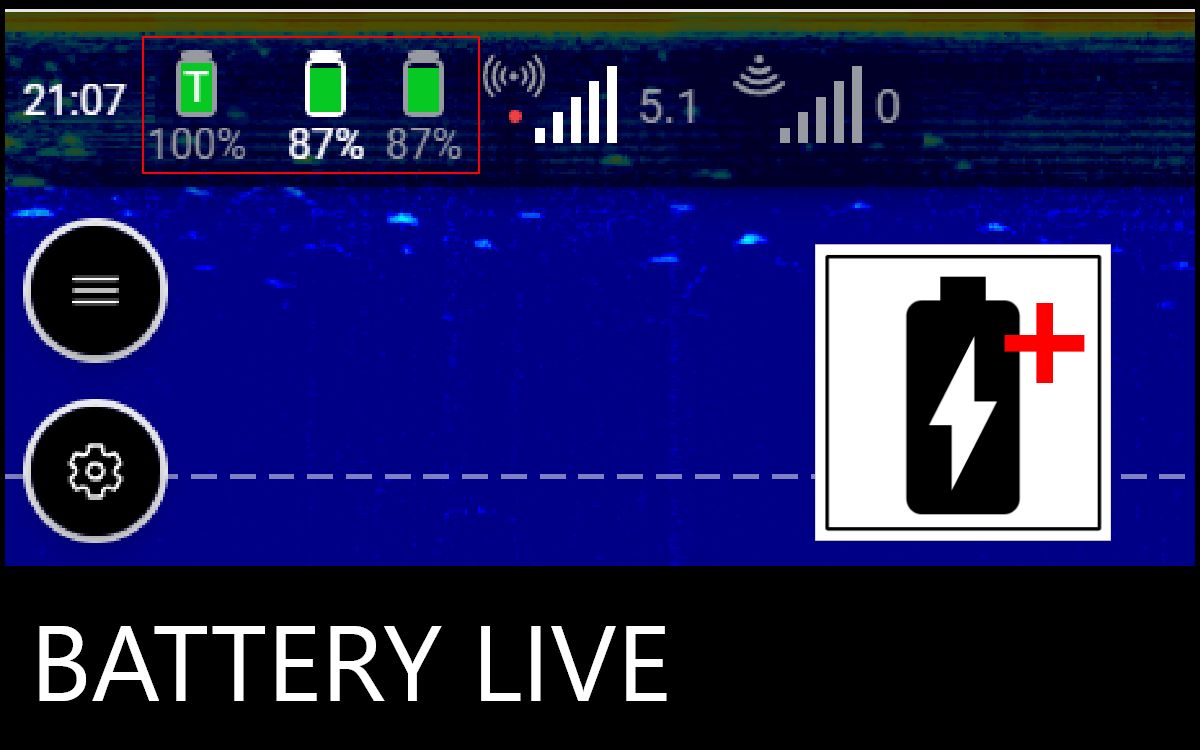

Liveanzeige von Akkuständen
Ermöglicht den rechtzeitigen Austausch oder das Aufladen der Batterie und verhindert so unerwartete Stromausfälle.
+ BASIC PAKET

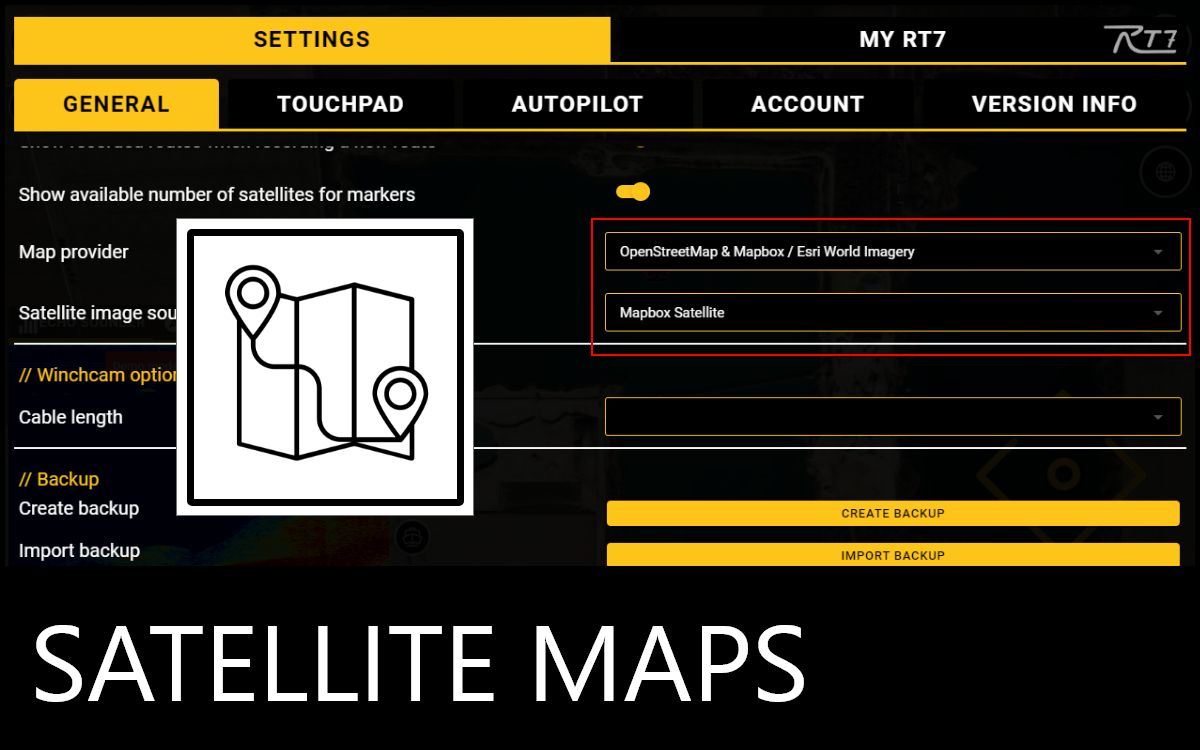

OpenStreetMap - Online Kartenprovider
Integriert OpenStreetMap & Mapbox / Esri World Imagery als Online-Kartenanbieter und bietet einen vertrauten und detaillierten Kartendienst.
+ BASIC PAKET

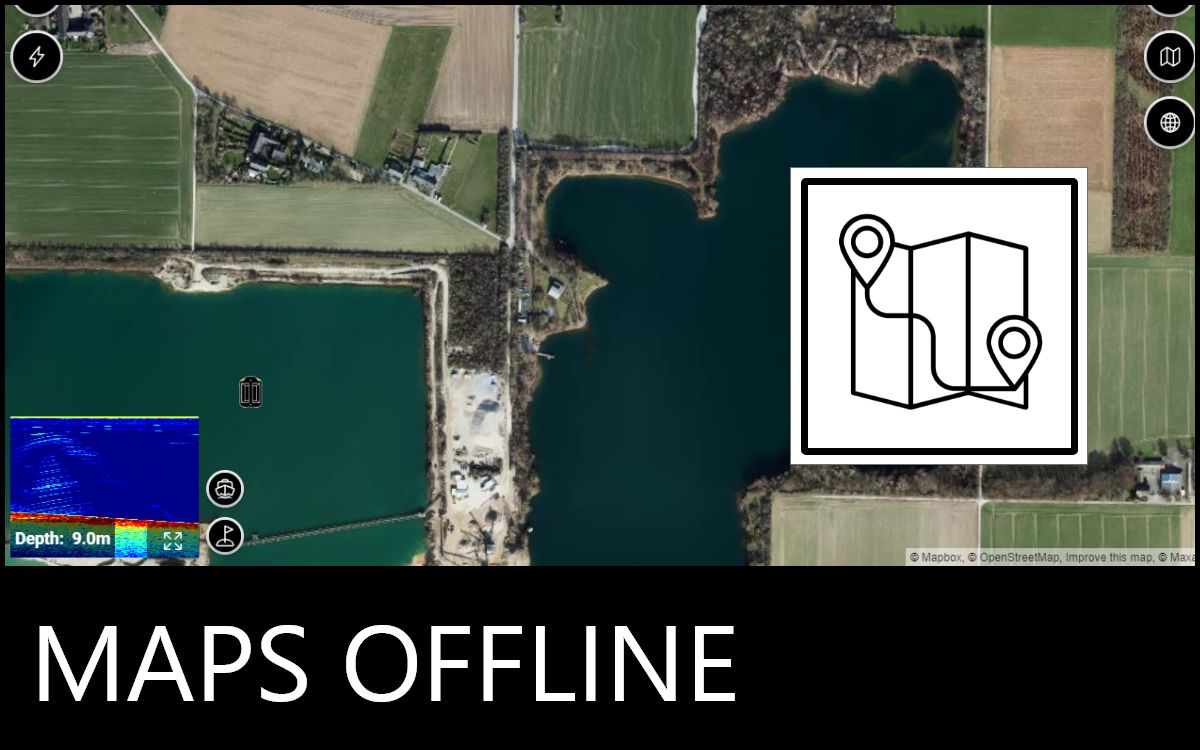

Offline-Karten
Ermöglicht das Herunterladen von Karten für die Offline-Nutzung, um die Navigation auch ohne Internetverbindung zu gewährleisten.
+ BASIC PAKET

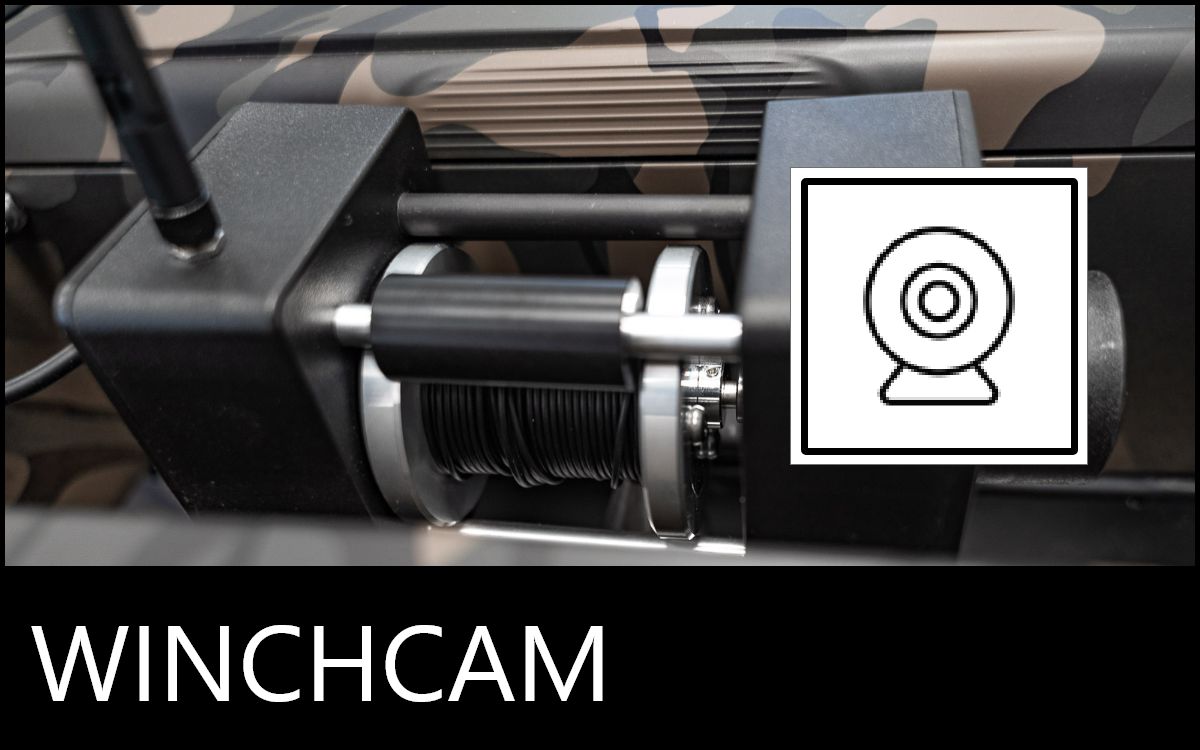

Winchcam support
Ermöglicht die Verwendung der Winchcam, die Live-Bilder unter Wasser liefert und damit die Möglichkeiten der App erweitert.
+ BASIC PAKET

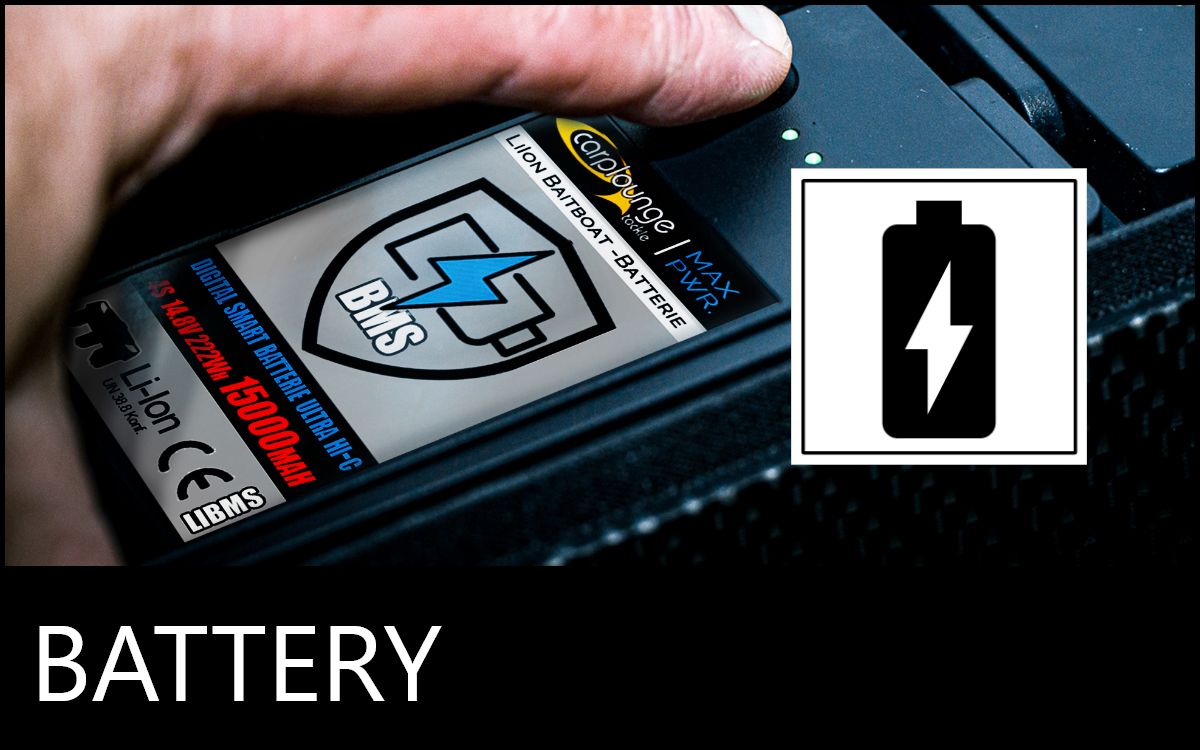

Akkuleerstandswarnung
Warnt den Benutzer, wenn der Batteriestand kritisch niedrig ist, so dass er rechtzeitig handeln kann, um den Akkut zu tauschen oder zu laden.
+ BASIC PAKET

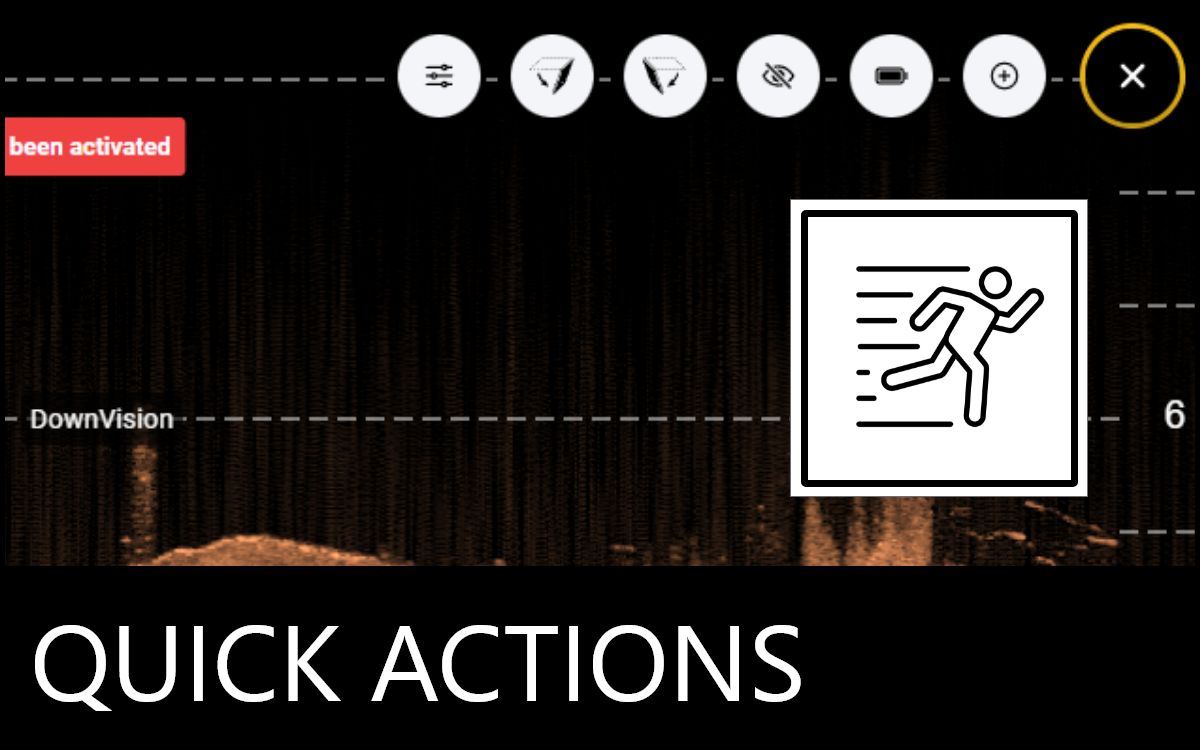

Quickactions
Bietet Verknüpfungen zu häufig verwendeten Funktionen, um Ihnen den Weg zu Ihren bevorzugten und am häufigsten benutzten Funktionen zu erleichtern.
+ BASIC PAKET

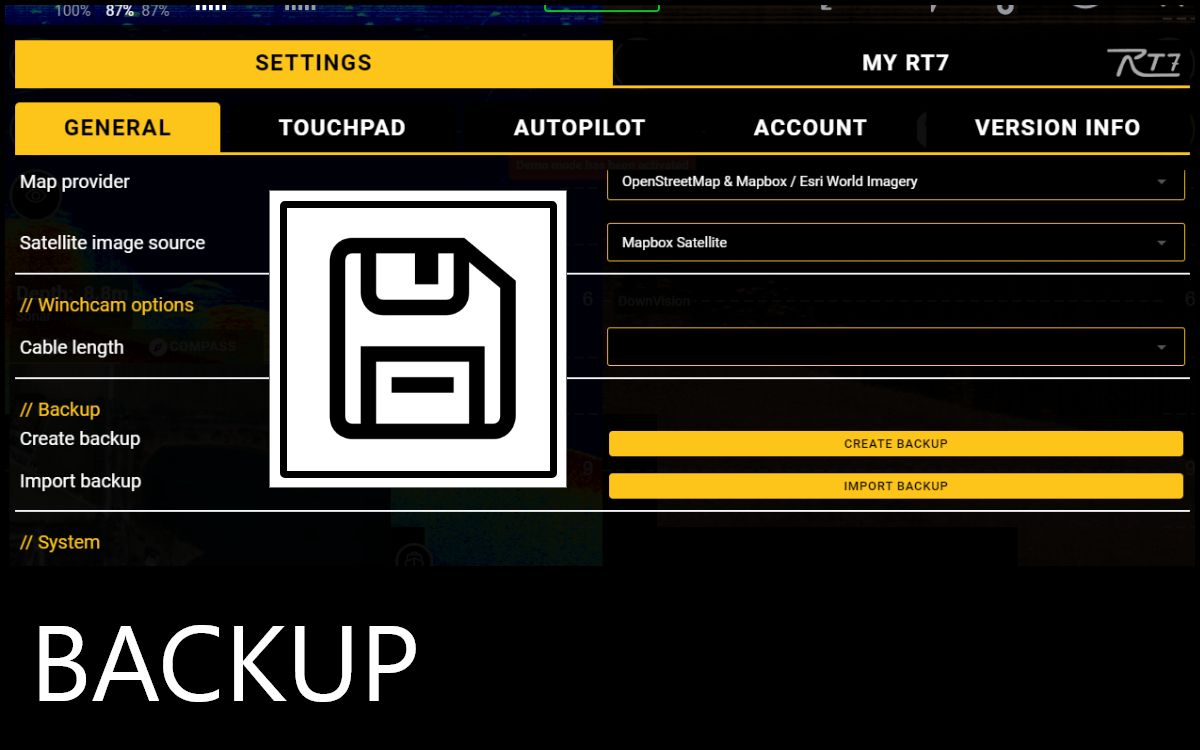

Backups erstellen & einspielen
Ermöglicht es den Benutzern, Sicherungskopien ihrer App-Daten zu erstellen und diese bei Bedarf wiederherzustellen, um die Datensicherheit zu gewährleisten.
+ BASIC PAKET
Demo-Lizenzen für Premium-Features
Ermöglicht es den Nutzern, Premium-Funktionen mit Hilfe von Demolizenzen auszuprobieren und so eine einfachere Entscheidung über mögliche Upgrades zu treffen.
2. CHARGE All-In-One Controller
All-In-One Controller
Charge the All-In-One Controller! Be sure that its fully charged before first use!
USB-C charging port
Below on the right, you will find the USB-C charging port for the AiO controller. When connected it will charge the AiO controller and tablet (if plugged in) at the same time. Charging is indicated by a red LED on the right LED strip.
BOX CONTENT:
Box content:
RT7 Baitboat
1 x
All-In-One Controller (AIO)
1 x
EPP Boat Case
1 x
EPP AIO-Controller Case
1 x
868 MHz antenna
1 x
Shark Fin” Antenna
1 x
USB-C to USB-C Cable
1 x
SMART DIGITAL BAITBOAT BATTERY ULTRA HI-C 4S *
2 x
* Depends on your order - You have ordered the SMART BATTERY upgrade.
SMART Fast charger with 5A *
1 x
* Depends on your order - You have ordered the SMART BATTERY upgrade.
BASICPWR Li-Ion Baitboat battery 14,8V 8,7aH HI-C *
2 x
* Depends on your order - You did not order the SMART BATTERY upgrade.
SKYRC IMAX B6 EVO CHARGER *
1 x
* Depends on your order - You did not order the SMART BATTERY upgrade.
